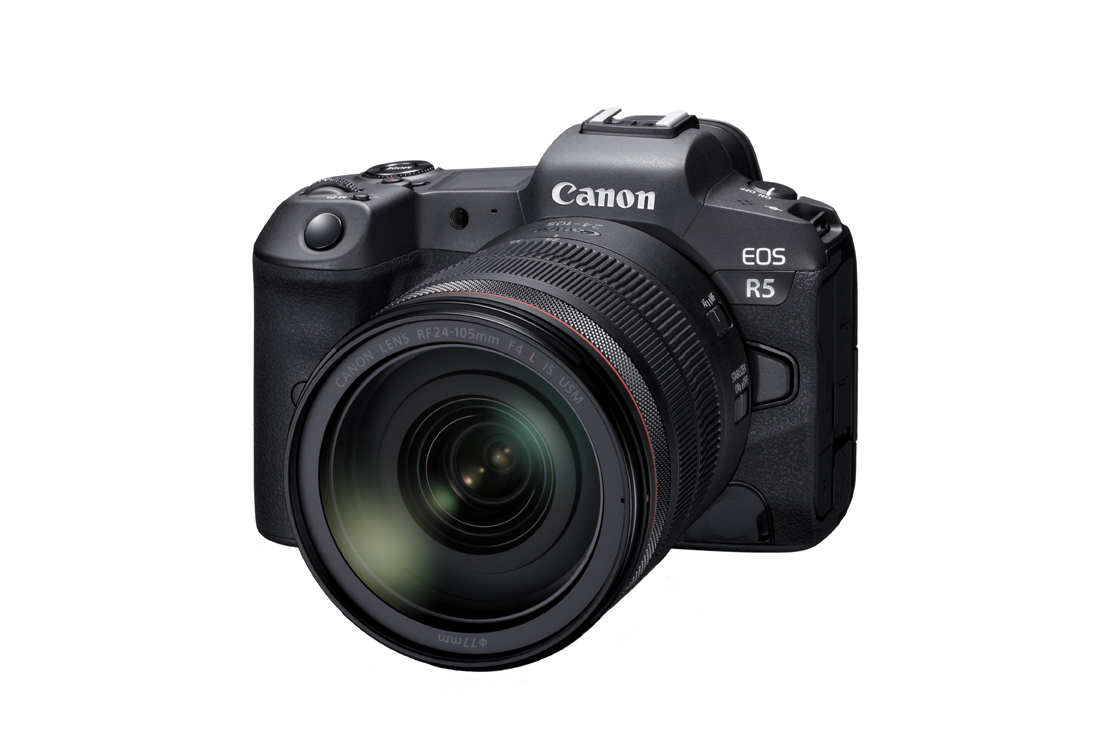

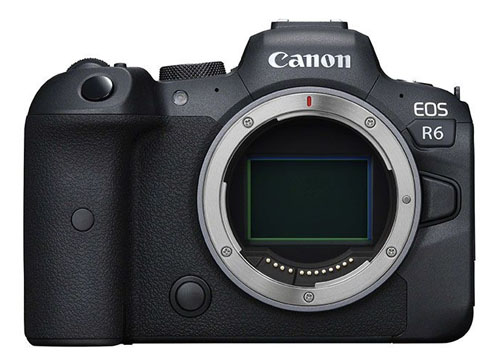

Detailed Specifications of Canon EOS R5 and R6 Leaked Online

Here are the detailed specifications of the upcoming Canon EOS R5 (listed at B&H/ Adorama) and Canon EOS R6, leaked at Nokishita-C

Compatible Lenses

  • Canon RF lens group (excluding EF, EF-S and EF-M lenses)
  • When using Mount Adapter EF-EOS R: Canon EF or EF-S lenses (excluding EF-M lenses) Lens Mount

Processor

  • DIGIC X

Sensor & Image Information

  • CMOS sensor (compatible with Dual Pixel CMOS AF) Effective Pixels
  • Approx. 45.0 megapixels Sensor Size
  • Approx. 36.0 x 24.0mm Pixel Size
  • Approx. 4.40 micro m square Total Pixels
  • Approx. 47.1 megapixels Aspect Ratio
  • 3:2 (Horizontal: Vertical) Color Filter System
  • RGB primary color filters Low Pass Filter Installed in front of the image sensor, non-detachable.
  • Compliant to Design rule for Camera File system 2.0 and Exif 2.3 Image Format
  • JPEG, HEIF, RAW (CR3, 14-bit RAW format), C-RAW (Canon original); Movies: ALL-I, IPB, RAW Image Processor

Viewfinder Type

  • OLED color electronic viewfinder; approx. 5.76 million dots resolution Coverage
  • Approx. 100% vertically and horizontally relative to the shooting image area (with image quality L, at approx. 23mm eyepoint).

Magnification / Angle of View

  • Approx. 0.76x / Approx. 35.5 degrees (with 50mm lens at infinity, -1 m) Eye Point
  • Approx. 23mm (at -1 m from the eyepiece lens end) Dioptric Adjustment Range
  • Approx. -4.0 to + 2.0m Focus Method
  • Dual Pixel CMOS AF Shutter Type
  • Electronically-controlled focal-plane shutter Electronic first curtain or mechanical shutter Electronic shutter

Shutter Speeds

  • When [Mechanical] or [Elec. 1st- curtain] is set: 1/8000-30 sec, bulb When [Electronic] is set: 1/8000-0.5 sec.

X-sync Speed

  • Mechanical Shutter: 1/200 sec. Elec. 1st-curtain: 1/250 sec.

Shutter Release

  • Soft-touch electromagnetic release Self Timer
  • 10-sec. delay, 2-sec. delay Monitor Type

LCD Information

  • TFT color, liquid-crystal monitor Monitor Size
  • 3.2-inch (screen aspect ratio of 3:2)
  • 3.15 in./8.01cm diagonal (2.63 in./6.67cm width, 1.75 in./4.44cm height)
  • Approx. 2.1 million dots

EVF Coverage

  • Approx. 100% vertically/horizontally Brightness Control
  • Manually adjustable to one of seven brightness levels Coating
  • Clear View LCD II
  • Anti-smudge coating applied.
  • Anti-reflection coating not applied.

Interface Languages

  • 29 (English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Ukraine, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Vietnamese, Hindi, Romanian, Turkish, Arabic, Thai, Simplified/Traditional Chinese, Korean, Malay, Indonesian, Japanese)

Standards Compliance

  • IEEE 802.11a/ac/b/g/n Transmission Method
  • DS-SS modulation (IEEE 802.11b)
  • OFDM modulation (IEEE 802.11g/n/a/ac) Transition Frequency (Central Frequency)
  • 2.4 GHz band
  • Frequency: 2412 to 2462 MHz
  • Channels: 1 to 11 channels
  • 5 GHz band
  • Frequency: 5180 to 5825 MHz
  • Channels: 36 to 165 channels Recording Media
  • CFexpress card:
  • Type B: Card slot
  • SD card speed class-compatible.

SD card:

  • Compatible with UHS-II
  • Eye-Fi cards and Multimedia cards (MMC) are not supported.

Environment

  • Working Temperature Range 0 to +40 Degree C
  • Working Humidity Range 85% or less

Size & Weight

  • Approx. 138 x 97.5 x 88mm
  • Approx. 738g (including battery, SD memory card; without body cap) Approx. 650g (body only; without battery, card or body cap)

Compatible Lenses

  • Canon RF lens group (excluding EF, EF-S and EF-M lenses)
  • When using Mount Adapter EF-EOS R: Canon EF or EF-S lenses (excluding EF-M lenses) Lens Mount

Processor

  • DIGIC X
  • CMOS sensor (compatible with Dual Pixel CMOS AF) Effective Pixels
  • Approx. 20.1 megapixels Screen Size
  • Approx. 36.0 x 24.0 mm Pixel Unit
  • Approx. 6.56 micro m square Total Pixels
  • Approx. 21.4 megapixels Aspect Ratio
  • 3:2 (Horizontal: Vertical) Color Filter System
  • RGB primary color filters Low Pass Filter. Installed in front of the image sensor, non-detachable Recording Format
  • Compliant to Design rule for Camera File system 2.0 and Exif 2.31 Image Format
  • JPEG, HEIF, RAW / C-RAW (CR3), C-RAW (Canon original) ; Movies: ALL-I (Time-lapse video only), IPB, MP4

Viewfinder Type

  • OLED color electronic viewfinder Coverage
  • Approx. 100% vertically and horizontally relative to the shooting image area (with image quality L, at approx. 23mm eyepoint).

Magnification / Angle of View

  • Approx. 0.76x / Approx. 35.2 degrees (with 50mm lens at infinity, -1 m) Eye Point
  • Approx. 23mm (at -1 m from the eyepiece lens end) Dioptric Adjustment Range
  • Approx. -4.0 to + 2.0 m (dpt) Focus Method
  • Dual Pixel CMOS AF Shutter Type
  • Electronically-controlled focal-plane shutter:
  • Electronic first curtain Mechanical shutter Electronic shutter
  • When [Mechanical] or [Elec. 1st- curtain] is set: 1/8000-30 sec, bulb When [Electronic] is set: 1/8000-0.5 sec.

X-sync Speed

  • Mechanical Shutter: 1/200 sec. Elec. 1st-curtain: 1/250 sec.

Shutter Release

  • Soft-touch electromagnetic release Self Timer
  • 10-sec. delay, 2-sec. delay Monitor Type

LCD Information

  • TFT color, liquid-crystal monitor Monitor Size
  • 3.0-inch (screen aspect ratio of 3:2)
  • 2.95 in./7.5cm diagonal (2.44 in./6.2cm width, 1.65 in./4.2cm height)
  • Approx. 1.62 million dots
  • Approx. 100% vertically/horizontally Brightness Control
  • Manually adjustable to one of seven brightness levels Touch-screen Operation
  • Supported for AF Point selection; Touch AF; Touch Shutter; Menu selection; Quick Control Menu; Magnified view

Coating

  • Clear View LCD II
  • Anti-smudge coating applied.
  • Anti-reflection coating not applied.

Interface Languages

  • 29 (English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Ukraine, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Vietnamese, Hindi, Romanian, Turkish, Arabic, Thai, Simplified/Traditional Chinese, Korean, Malay, Indonesian, Japanese)

Standards Compliance

  • IEEE 802.11b/g/n Transmission Method
  • DS-SS modulation (IEEE 802.11b) OFDM modulation (IEEE 802.11g/n)
  • 2.4 GHz band (5 GHz Wi-Fi not supported) Frequency: 2412 to 2462 MHz
  • Channels: 1 to 11 channels Recording Media
  • Two SD card slots:
  • Compatible with UHS-II
  • Eye-Fi cards and Multimedia cards (MMC) are not supported.

Working Temperature Range

  • 32 to 104 Degree F (0 to +40 Degree C) Working Humidity Range

Size & Weight

  • 85% or less Dimensions (W x H x D)
  • Approx. 138 x 97.5 x 88.4mm
  • Approx. 680g (including battery, SD memory card; without body cap) Approx. 598g (body only; without battery, card or body cap)
