Best PSU for Overclocking

When building a PC aimed at overclocking, one of the most important components to consider is the power supply unit (PSU). Overclocking increases power consumption and heat output, so you need a PSU that can provide stable, clean power to your components under heavy load. Choosing the right PSU for overclocking comes down to wattage, efficiency rating, and quality of components. In this guide, we’ll explain what to look for in the best PSU for overclocking and provide recommendations at various price points.

Wattage

The first consideration when selecting a PSU for overclocking is getting enough wattage to support your system’s power demands. Overclocking increases electricity consumption substantially, so you want a buffer above your baseline system power draw. For example, a stock Intel Core i7 CPU and Nvidia RTX 3080 GPU build might consume 450W under load. With moderate overclocks applied, power consumption could easily exceed 600W. So for this system, a quality 750W PSU would be the bare minimum.

As a general guideline, add at least 200W to your stock system power consumption when choosing a PSU for overclocking. More headroom is better to allow for aggressive CPU and GPU overclocking. Reputable PSU brands like Corsair, EVGA and Seasonic provide wattage calculators on their sites to help you determine the ideal PSU wattage for your configuration.

Efficiency Rating

The efficiency rating of a PSU refers to how much power is lost during conversion from AC to DC power. Look for an 80 Plus Gold or Platinum rated PSU for overclocking systems. Higher efficiency equals lower electricity bills and less heat output. Less wasted power also means more stable power delivery when components are pushing their limits via overclocking.

Quality Components

Buying from a reputable brand is the best way to ensure you’re getting a well-built PSU. Quality components like Japanese capacitors will provide stable, reliable power delivery when running an overclocked system. Modular cables allow you to only use the cables your system needs, improving case airflow. Look for key features like Active Power Factor Correction (PFC), tight voltage regulation, over power and over current protection. These indicate a robust PSU engineered for high performance systems.

Recommendations

Here are our top PSU picks for overclocking at various budgets:

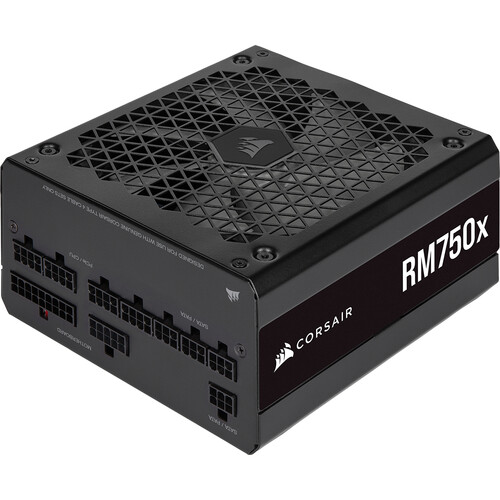

Budget: Corsair RMX Series (2021) RM750x 750W Gold Fully Modular PSU – Check Price at Amazon/B&H Photo Video/Newegg

The Corsair RMX Series RM750x 750W power supply is an excellent choice for a high-end gaming PC build. With 80 Plus Gold certification and fully modular cables, it provides efficient and reliable power delivery in a flexible package. The 750W rating gives plenty of headroom for power-hungry components like high-end GPUs. Fan noise is minimal under typical loads thanks to the zero RPM fan mode. Overload protection, tight voltage regulation, and Japanese capacitors round out the impressive electrical performance. If you’re looking for a top-tier PSU with whisper-quiet operation to power your gaming rig, the Corsair RM750x is a great option.

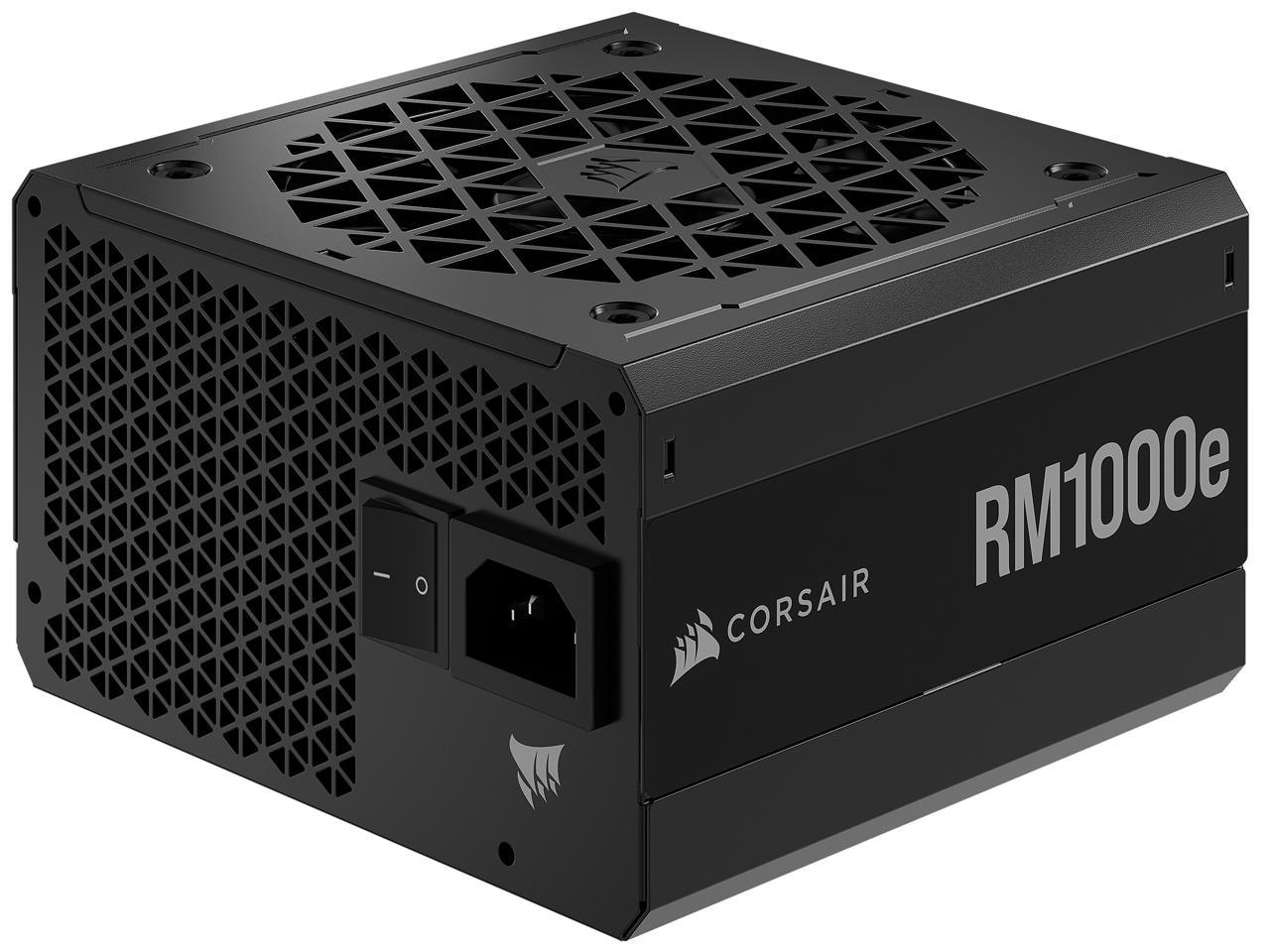

Mid-Range: Corsair RM1000e (2023) Fully Modular Low-Noise ATX PSU – Check Price at Amazon/B&H Photo Video/Newegg

The Corsair RM1000e offers cutting-edge technology and reliability in a compact, modular power supply. Fully modular cabling allows you to reduce clutter by only connecting the cables needed for your build. The five universal 8-pin connectors provide ample power for modern motherboards and graphics cards. This PSU is officially ATX 3.0 certified, meeting stringent requirements for efficiency and reliability. It includes the new 12VHPWR cable for powering next-gen PCIe 5.0 GPUs like the RTX 40 series. Despite the robust performance, the RM1000e still runs quietly thanks to the 140mm axial fan with Zero RPM Fan Mode. The shorter size saves space behind the PSU for improved cable management. Under the hood, Corsair utilizes a high-quality resonant LLC topology with DC-DC conversion and 105°C-rated Japanese capacitors. Precise timings enable Modern Standby for near-instant wake from sleep. 80 Plus Gold certification ensures up to 90% efficiency for reduced power draw and heat output. Overall, if you want a cutting-edge, compact PSU that can reliably power the latest components in a cool and quiet system, the Corsair RM1000e hits the mark.

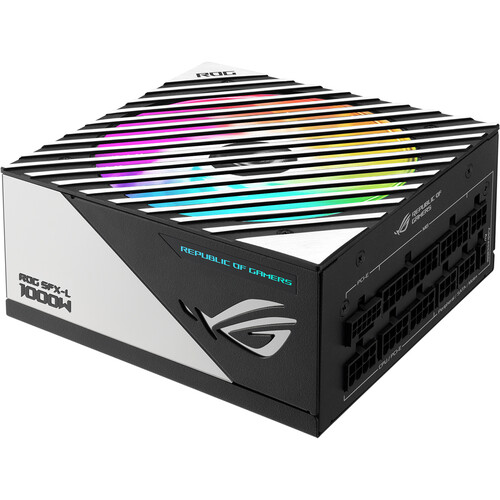

High-end: ASUS ROG LOKI SFX-L 80+ Platinum 1000W Modular PSU – Check Price at Amazon/B&H Photo Video/Newegg

The ASUS ROG LOKI SFX-L 80+ Platinum 1000W Modular PSU packs impressive power and features into its compact SFX-L form factor. With 80+ Platinum certification and 1000W max power, it can easily handle overclocked CPUs and GPUs. The modular design with dedicated PCIe 5.0 16-pin cable simplifies cable management for tidy builds. An innovative ROG heat sink design and quiet 120mm fan keep noise and temperatures low even under heavy loads. The fan stops completely below 40% load for silent operation. Japanese capacitors ensure excellent efficiency for reduced electricity waste. RGB lighting on the fan adds customizable flair. The 10-year warranty provides peace of mind for this PSU’s reliability. Overall, the LOKI brings top-tier performance, future-proofing for PCIe 5.0 graphics cards, and signature ROG style to small form factor rigs. Its ample wattage can power overclocked components without breaking a sweat. For a high-end SFX-L PSU with headroom for upgrades, the ASUS ROG LOKI is an excellent choice.

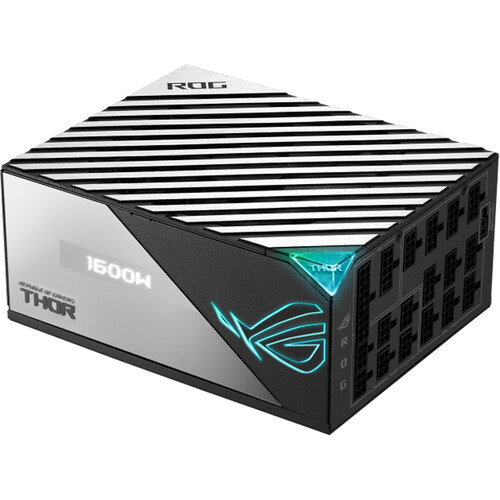

Ultra High-end: ASUS ROG THOR 1600W Titanium Fully Modular PSU – Check Price at Amazon/B&H Photo Video/Newegg

The ASUS ROG THOR 1600W Titanium Fully Modular Power Supply delivers unmatched power for overclocking and high-performance gaming rigs. With a massive 1600W +12V rail powered by cutting-edge Gallium Nitride transistors, it provides ample clean power to push CPU and GPUs to their limits. The 80 Plus Titanium certification ensures up to 94% efficiency, reducing power waste and heat. An array of premium components like 100% Japanese capacitors gives the ROG THOR rock-solid stability even under heavy loads. The digital power controller enables real-time adjustments to power delivery. Large ROG heatsinks and a 135mm PWM fan keep temperatures low during marathon gaming sessions. Fully modular cabling reduces clutter for improved airflow. The dedicated PCIe 5.0 connector powers next-gen graphics cards. An OLED display provides real-time power draw monitoring. Aura RGB lighting allows customization. With ultra-efficient power delivery and advanced cooling, the ROG THOR 1600W PSU is the ultimate overclocking weapon.

Conclusion

Choosing the right power supply is crucial when building a PC aimed at overclocking. You need ample wattage to support the increased power demands of overclocked components. Efficiency rating matters too – choose an 80 Plus Gold or Platinum PSU to minimize electricity waste and heat output. Quality internal components like Japanese capacitors ensure your overclocked rig receives stable, reliable power delivery even under heavy loads. Modular cabling allows you to reduce clutter by only using the cables needed for your setup.

When it comes to top PSU recommendations for overclocking, Corsair and ASUS ROG offerings stand out. The Corsair RM750x provides an affordable 750W option while their RM1000e model brings cutting-edge ATX 3.0 technology in a compact, modular design. For small form factor builds, consider the ASUS ROG LOKI SFX-L 1000W Platinum PSU. If budget is no concern, the monster 1600W ASUS ROG THOR with its Titanium efficiency, premium components, and advanced cooling delivers unmatched power for pushing overclocks to the limit. Carefully selecting a high-quality PSU designed to handle the rigors of overclocking will ensure system stability and maximize your CPU/GPU performance potential.
