EF 40-800mm f/4.5-5.6 Lens Patent

ef 40-800mm f 4.5 5.6 lens

Canon Japan has just filed a new lens patent on EF 40-800mm f/4.5-5.6 super telephoto zoom all-in-one lens.

Patent Publication No. 2016-128846
Published 2016.7.14
Filing date 2015.1.9

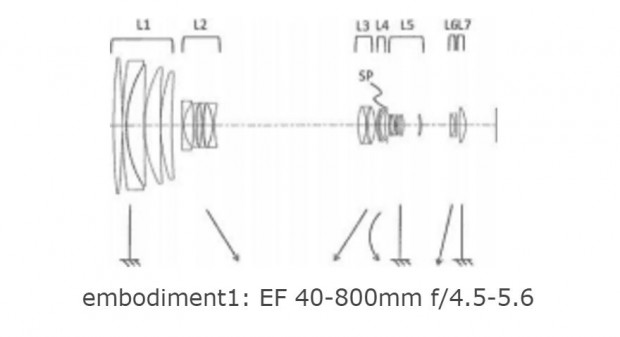

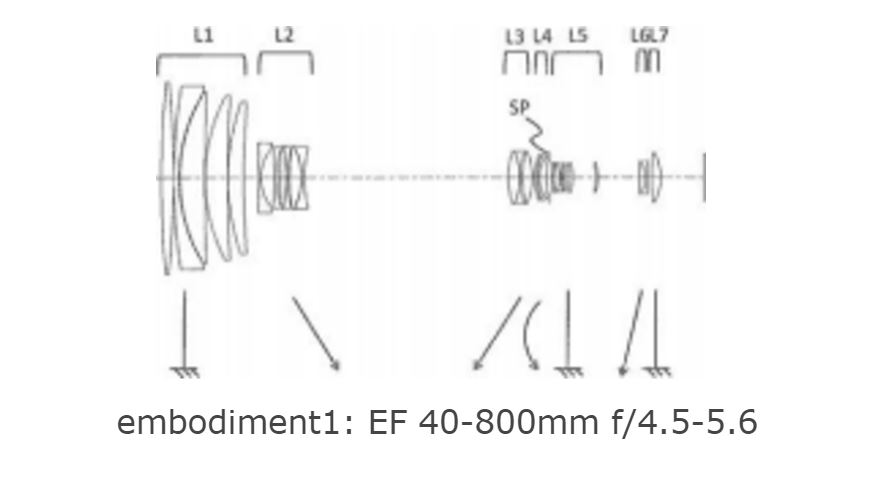

Example 1
Zoom ratio 19.42
Focal length 41.09 92.80 152.20 225.00 797.99
F-number 4.67 4.66 4.65 4.67 5.71
Angle of view 27.79 13.13 8.10 5.50 1.55
Image height 21.65
Overall length of the lens 489.32
BF 39.28
Patent of Canon
Inner zoom

via: EG
